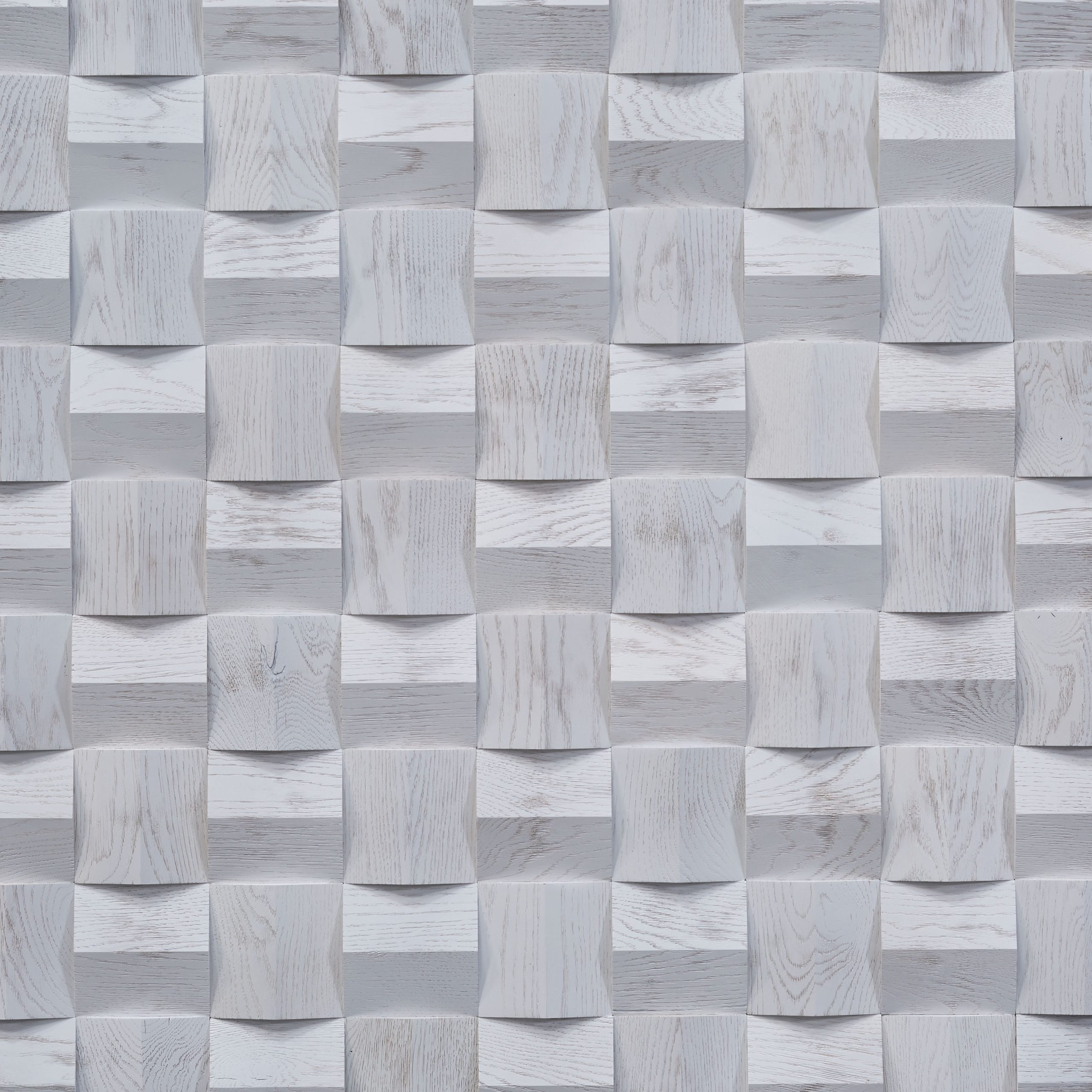

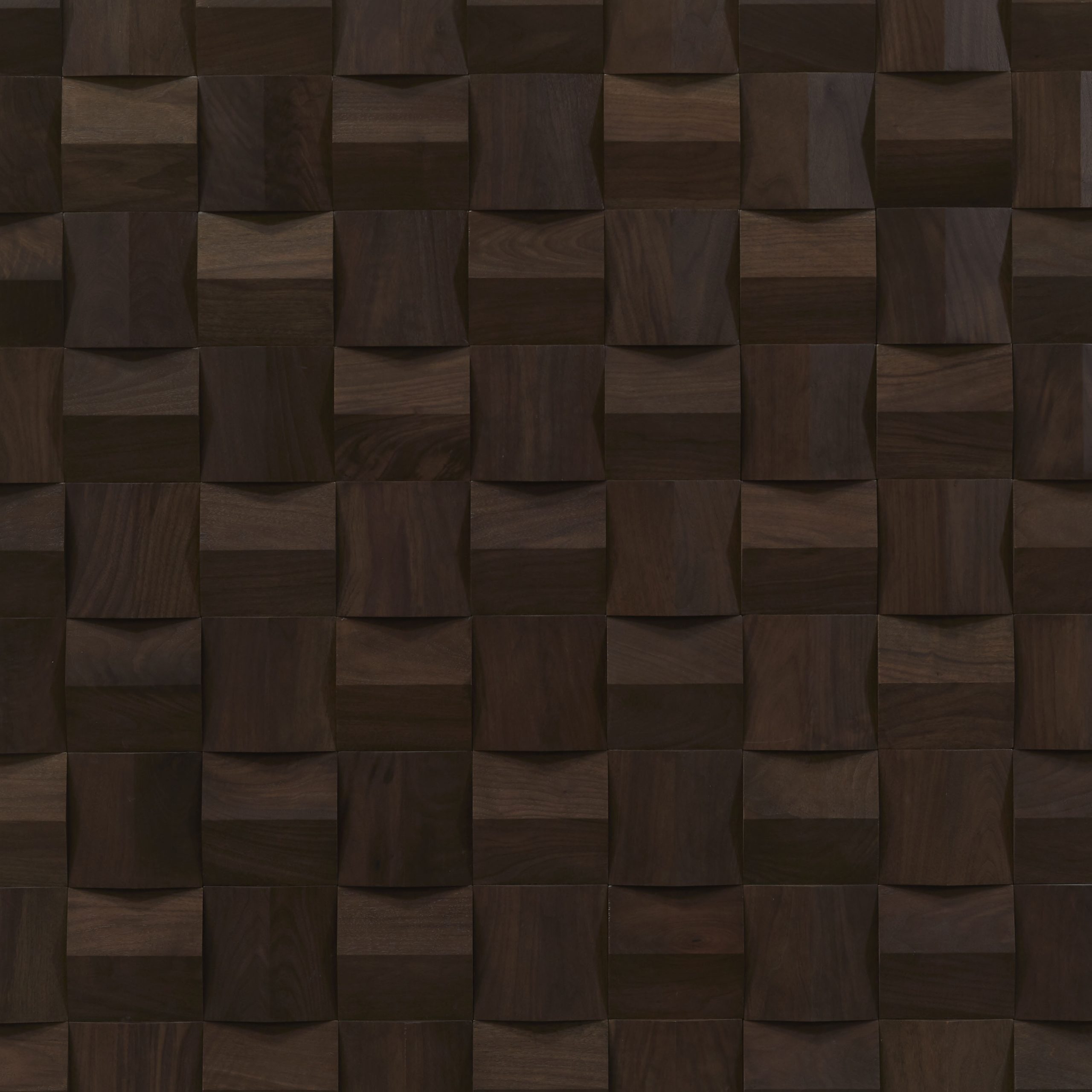

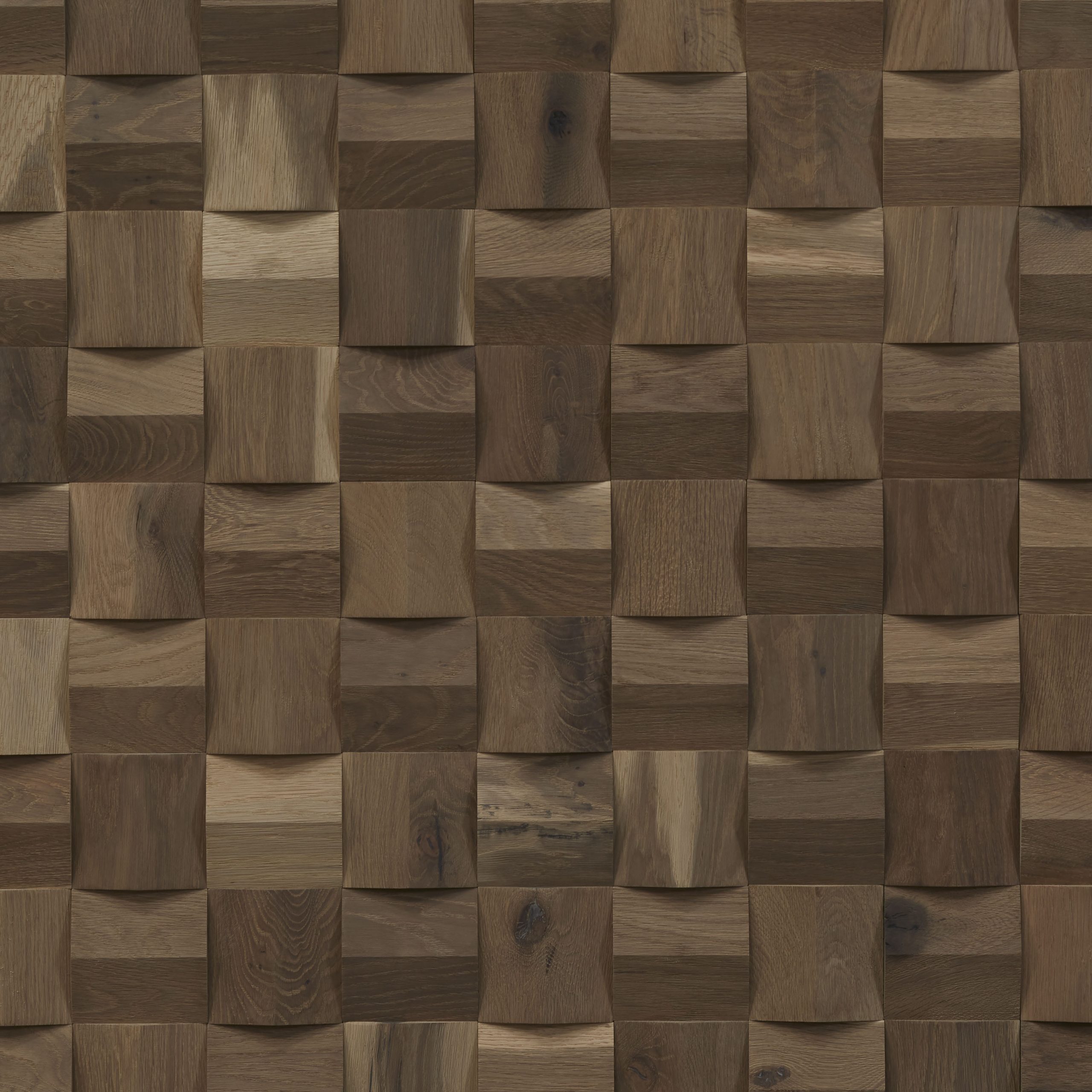

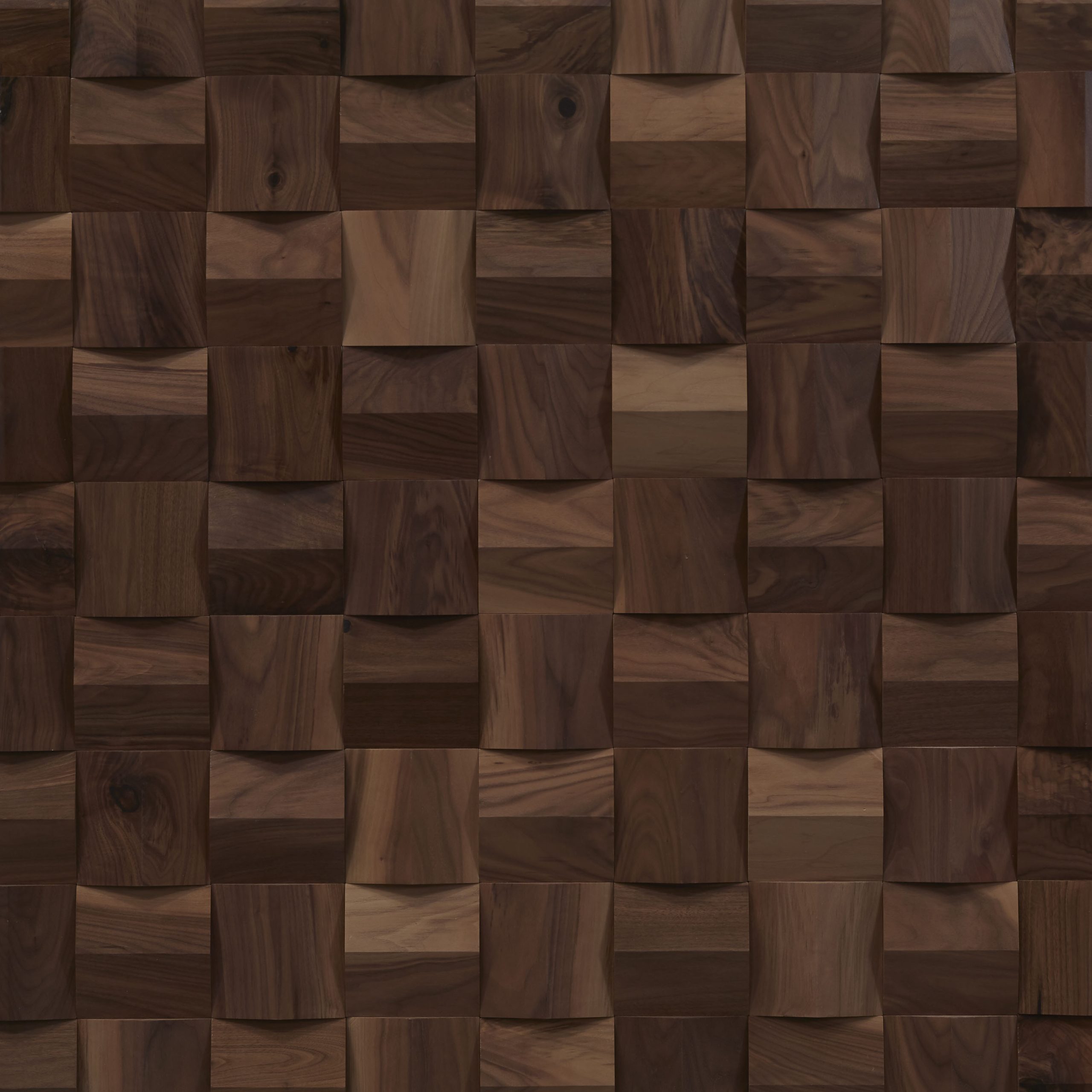

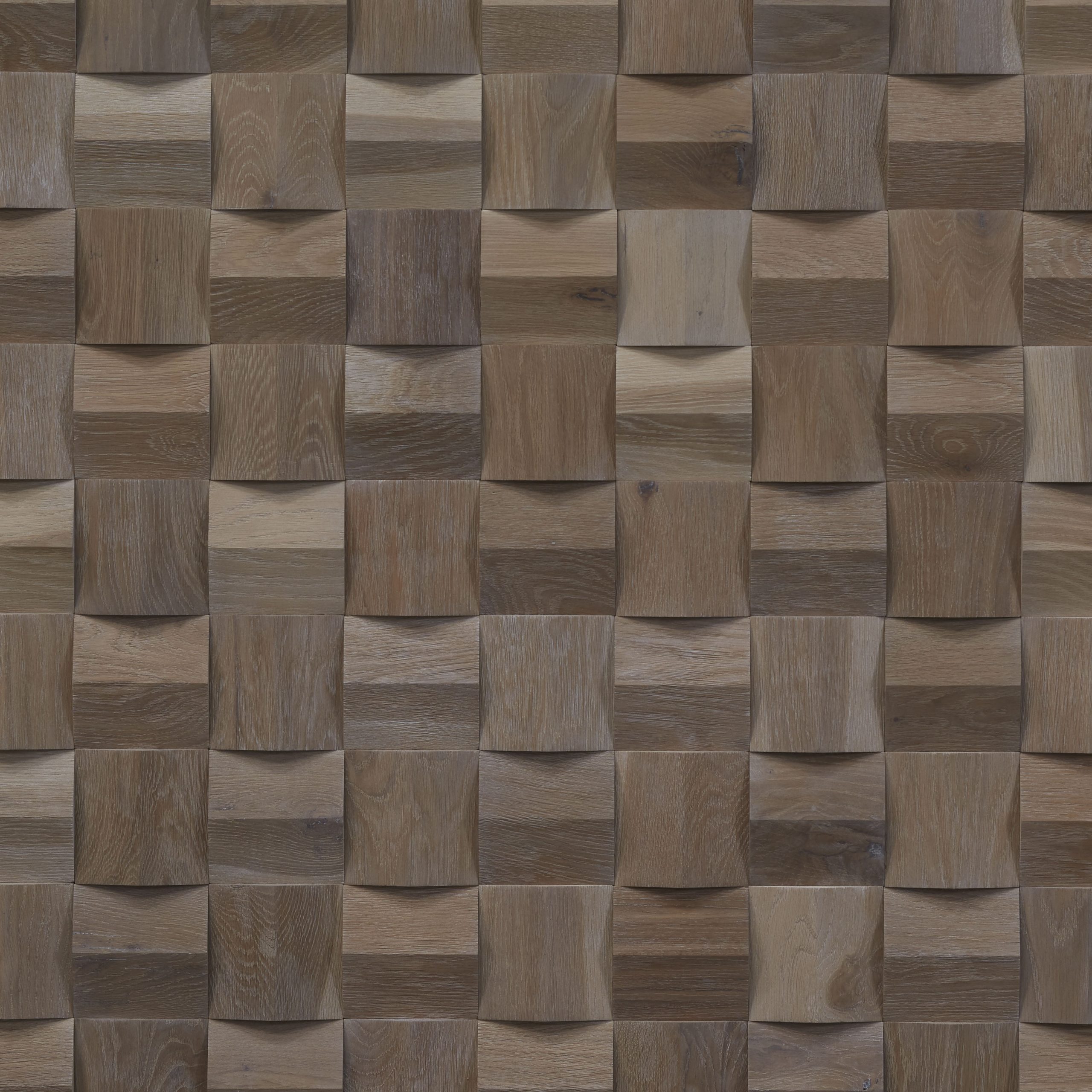

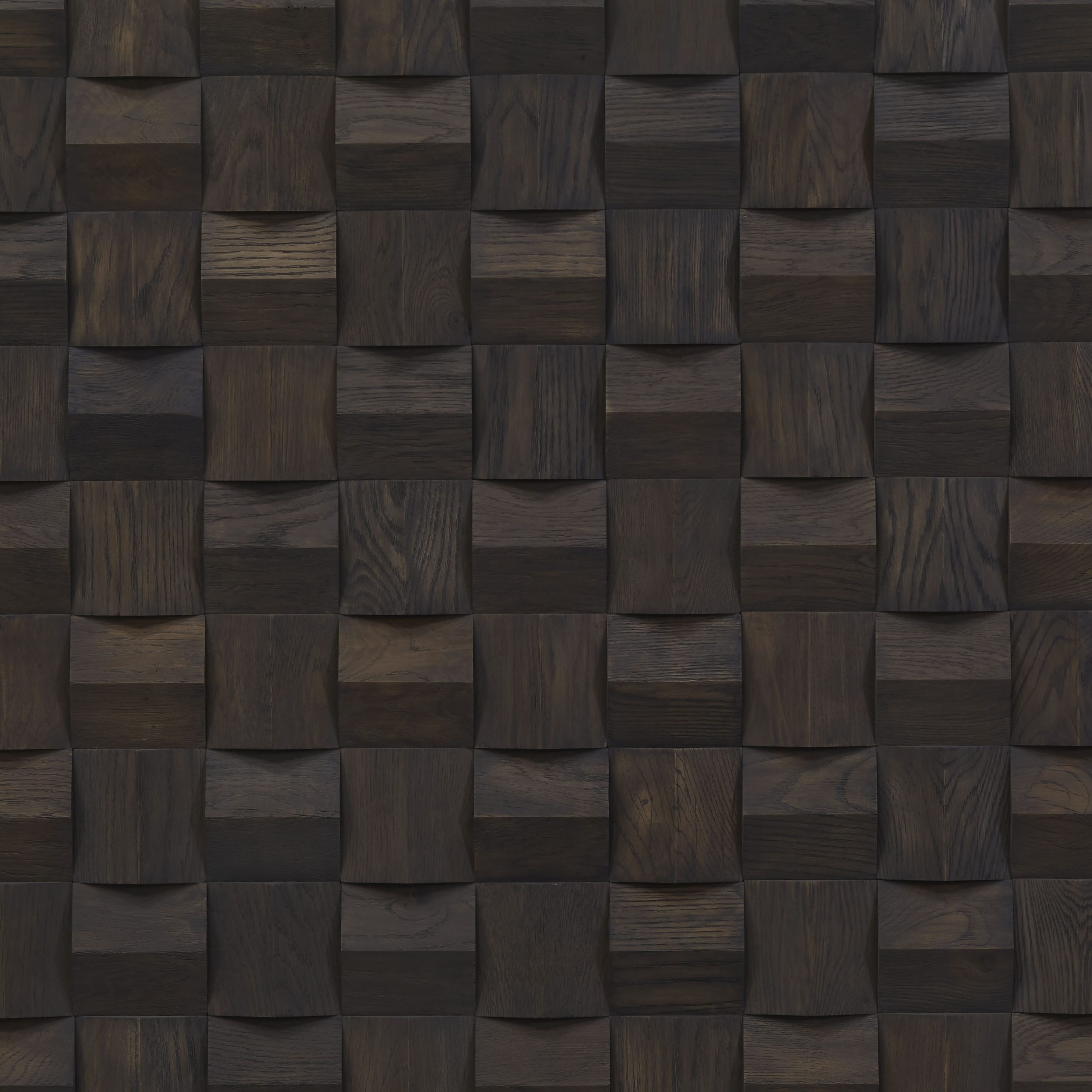

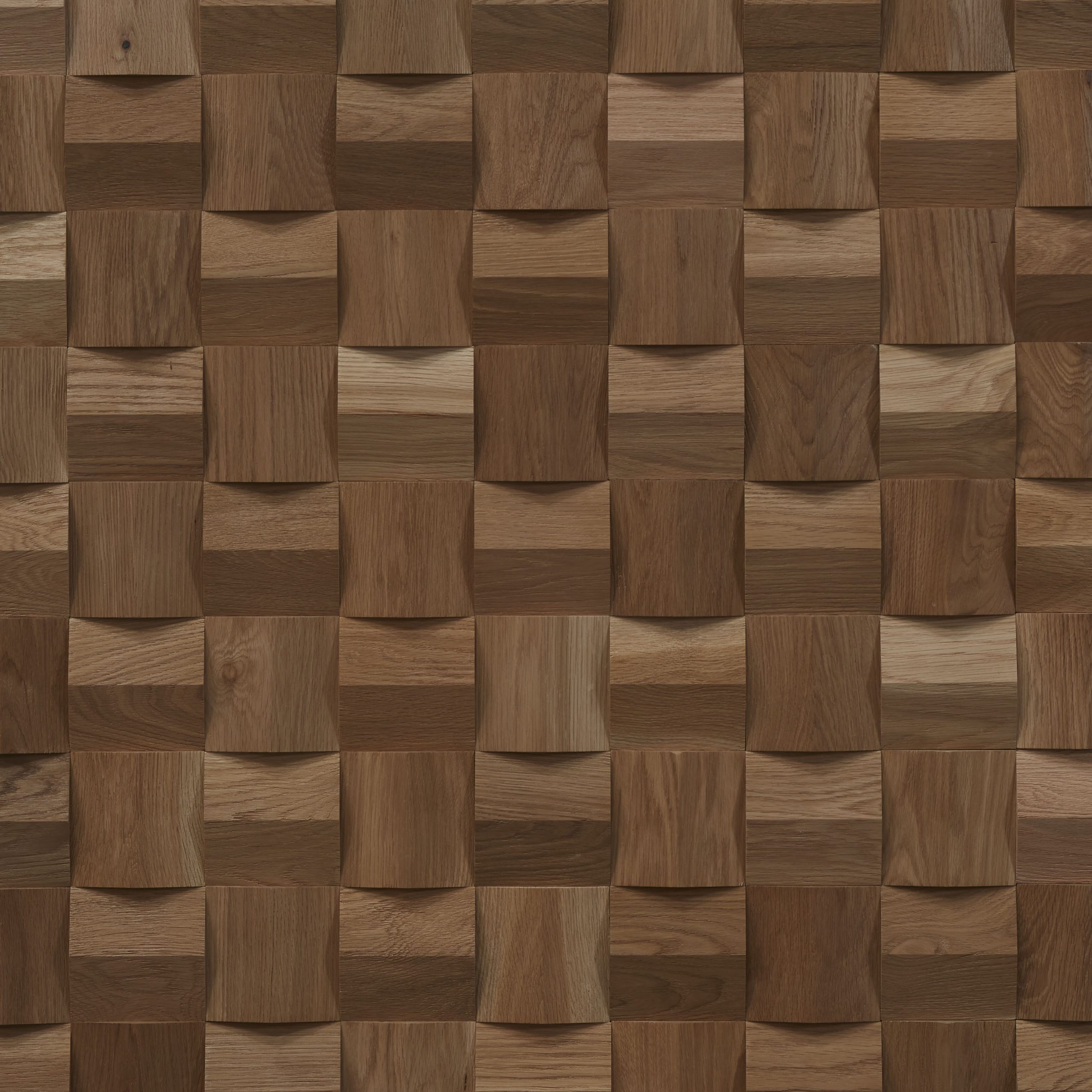

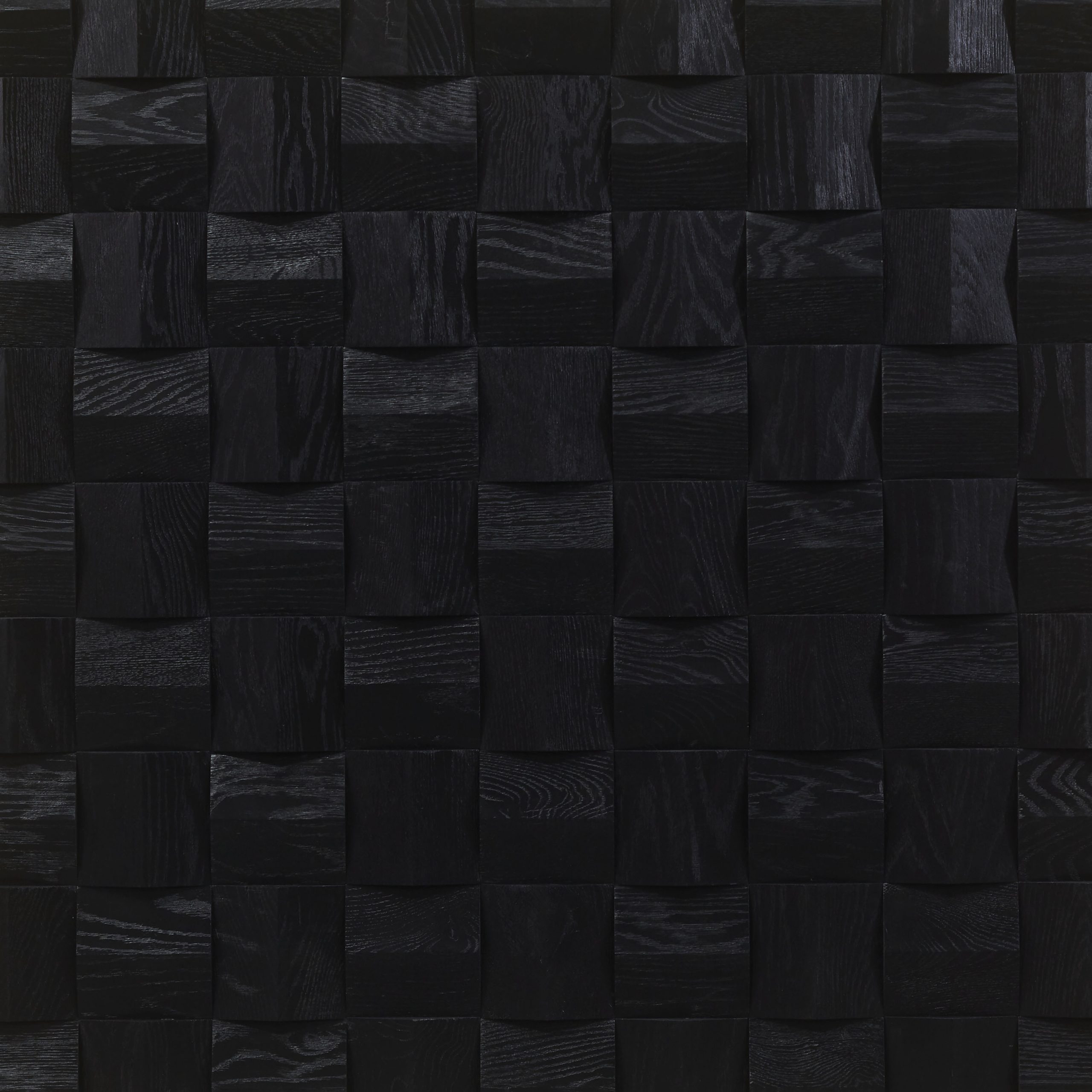

Squares that appear like peaked roof lines mounted to a masonite backing.
Specified finish color determines wood species (Walnut or Oak) and surface treatment. Can be installed either horizontally, vertically, or diagonally with construction adhesive and screws.
Species: Oak or Walnut (Defined per color, see matrix)
Grade: Character
Thickness: 15/16″ (23.81 mm)
Installation: Construction Glue & Nails
Radiant Heating: Not Applicable
Coverage per Box: 16.64 sf. ft. (1.545 m2)
Weight per Box: 46.10 lbs. (20.91 kg) Walnut 47.70 lbs. (21.63 kg) Oak
Specification notes: *Weight, coverage and dimensions may vary depending on finish and the natural expansion and contraction of wood.
Surface Texture: Defined per color, see matrix
Cut Pattern: Angled
Tiles per Box: 8 Pieces
Coverage per Tile: 2.03 sq. ft. (0.188 m2)*
Weight per Tile: 5.50 lbs. (2.49 kg) Walnut 6.30 lbs. (2.85 kg) Oak
Install Direction: Horizontal, Vertical, Diagonal
Fire Resistance: Optional “Class A Rating” Fire Retardant
