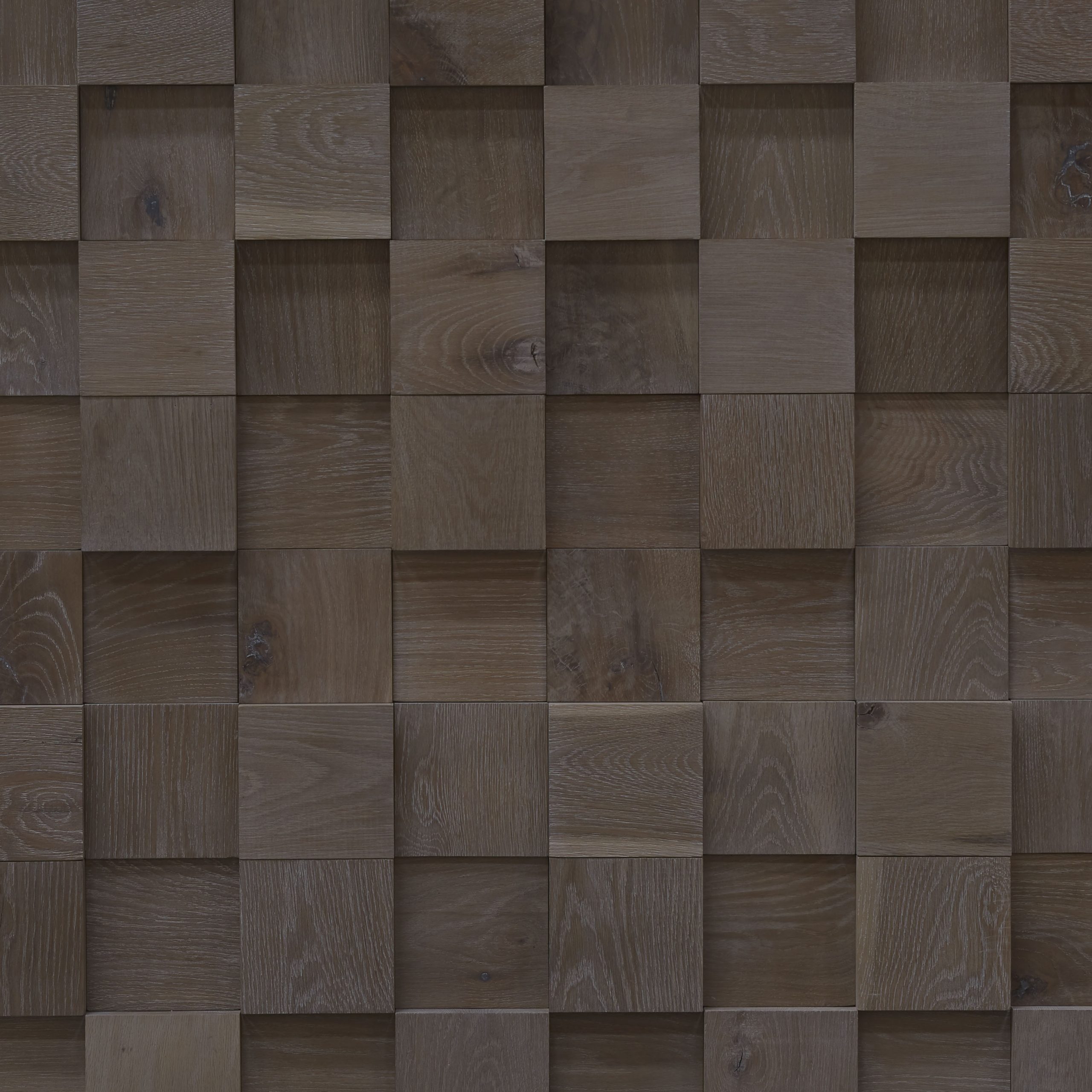

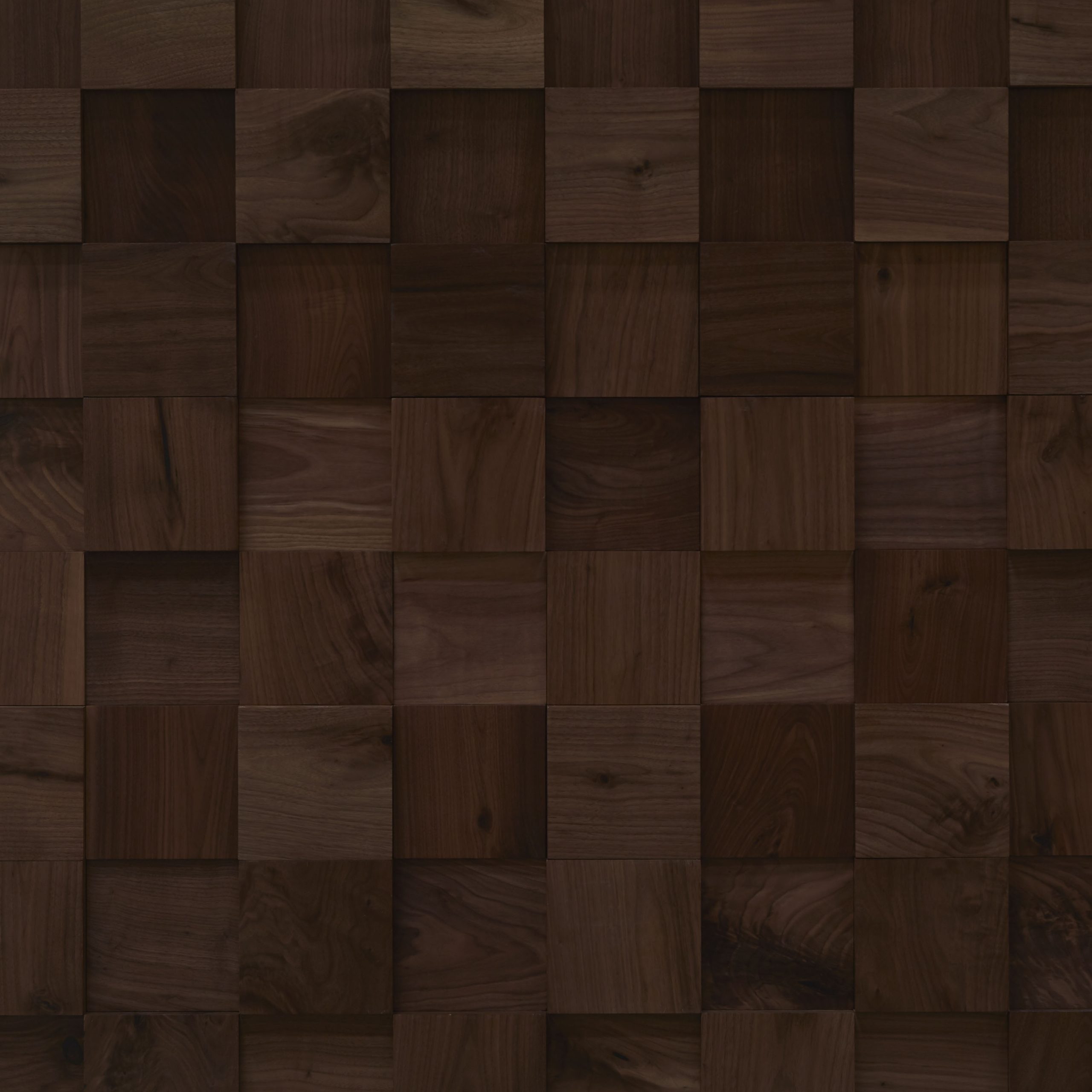

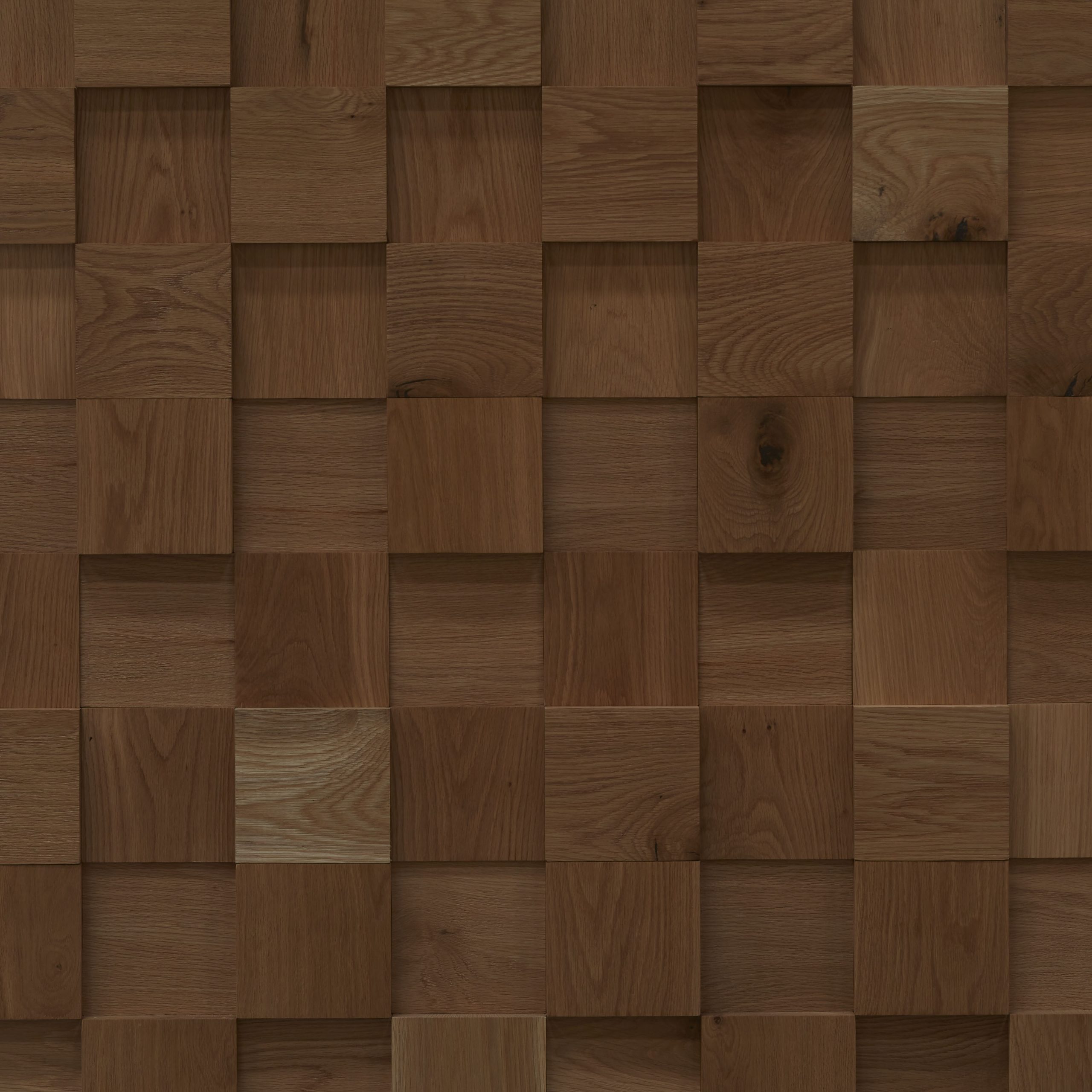

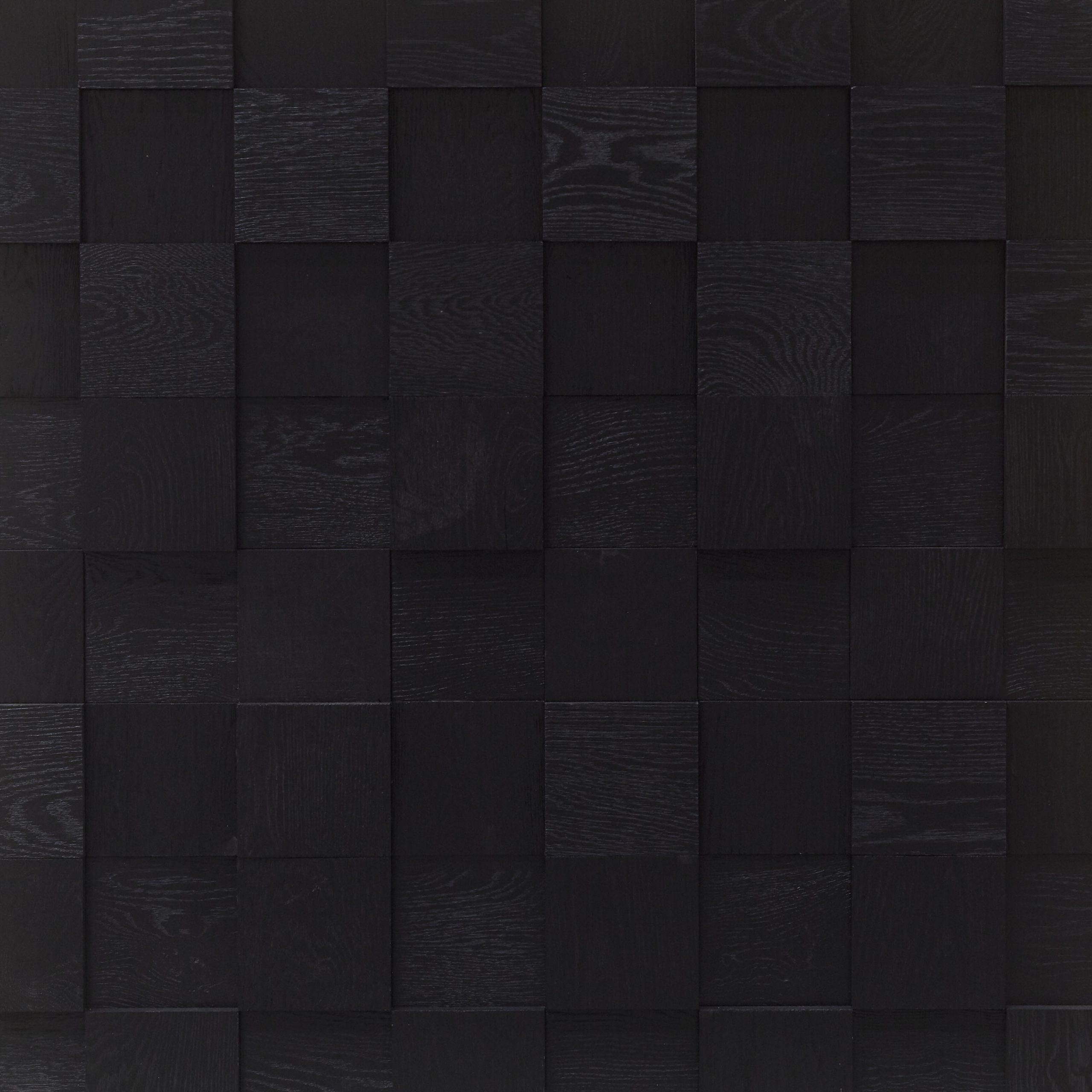

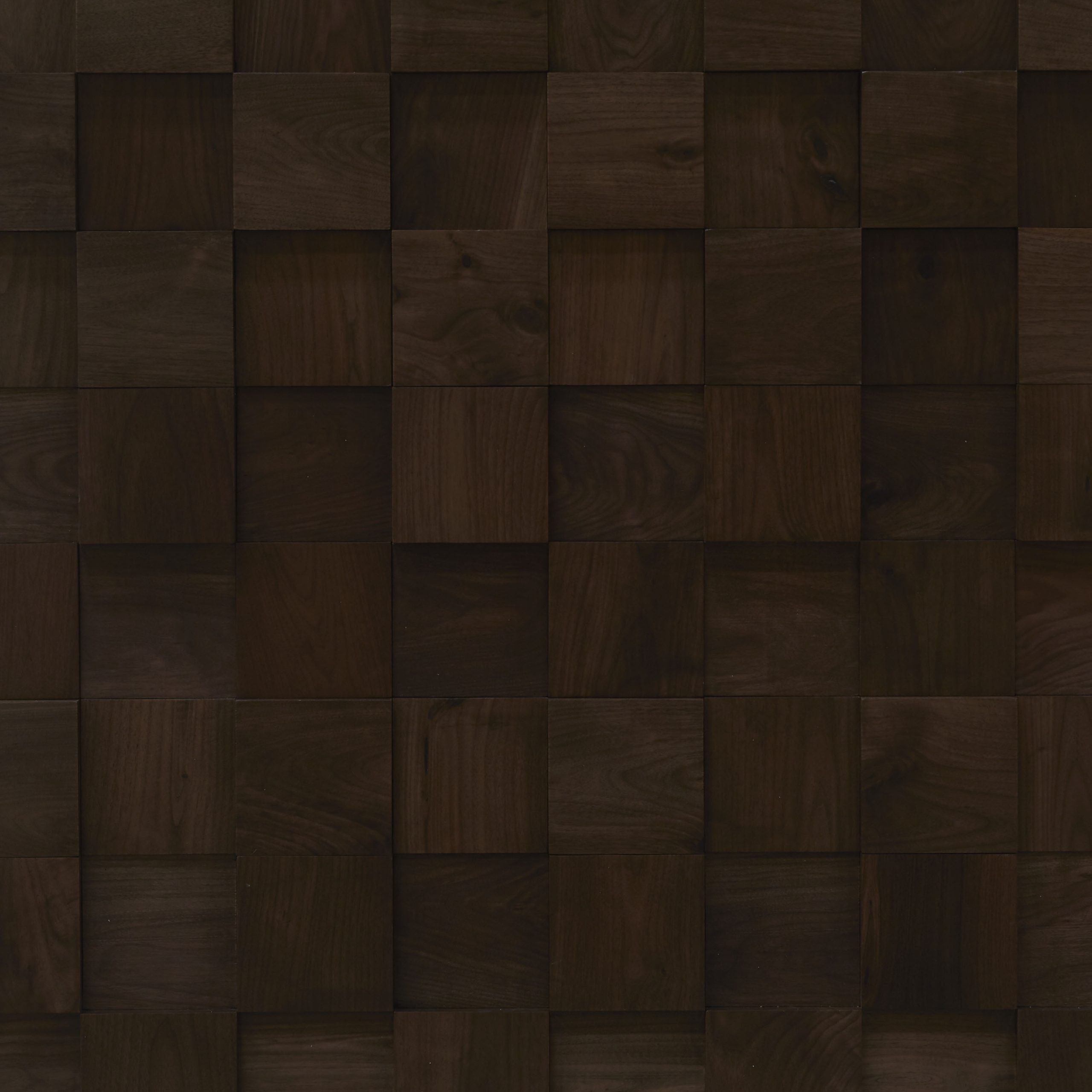

A repeated square pattern mounted to a masonite backing. Specified finish color determines wood species (Walnut or Oak) and surface treatment. Can be installed either horizontally, vertically, or diagonally with construction adhesive and screws.
Species: Oak or Walnut (Defined per color, see matrix)
Grade: Character
Thickness: 1-7/16″ (36.51 mm)
Installation: Construction Glue & Nails
Radiant Heating: Not Applicable
Coverage per Box: 13.80 sq. ft. (1.282 m2)
Weight per Box: 47.50 lbs. (21.54 kg) Walnut; 61.90 lbs. (28.07 kg) Oak
Specification notes: *Weight, coverage and dimensions may vary depending on finish and the natural expansion and contraction of wood.
Surface Texture: Defined per color, see matrix
Cut Pattern: Straight
Tiles per Box: 6 Pieces
Coverage per Tile: 2.30 sq. ft. (0.213 m2)
Weight per Tile: 7.30 lbs. (3.31 kg) Walnut; 9.70 lbs. (4.39 kg) Oak
Install Direction: Horizontal, Vertical, Diagonal
Fire Resistance: Optional “Class A Rating” Fire Retardant
